Universal Joint Cross TT-125
Universal Joint Cross KOYO Type number TT-125 for Toyota cars, with snap rings and grease nipple made of steel from China Universal Joints Cross bearings manufacturer.
 |
 |
Universal Joints , Universal Joints Cross Bearings
Material: Steel
Model: TT-125 / GUT25 ( Toyota OEM Number: 04371-04010 )
Packages: by white box / color box, inner with polybag, then in cartons and pallets;
TOYO number , OEM number and GMB number and specification:

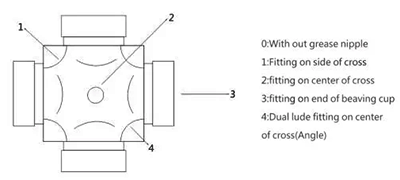

| KOYO NO. | FIG | OEM NO. | GMB NO. | ASSY Size | SNAP | NET | ||
| φ(D) mm | (O) mm | (L) mm | RINGS | Weight | ||||
| TT-116 | L | 04371-55020 | GUT-16 | 40 | 118 | PLATE | 1,800 | |
| TT-117 | E | 04371-30020 | GUT-17 | 29 | 52 | 1.5×26.5 | 500 | |
| TT-119 | D | 04371-10010 | GUT-19 | 20 | 57 | 1.2×21.5 | 200 | |
| TT-120 | F | 04371-36021 | GUT-20 | 32 | 64 | 1.5×29.4 | 760 | |
| TT-121 | G | 04371-35020 | GUT-21 | 29 | 52 | 1.5×26.5 | 530 | |
| TT-122 | L | 04371-55021 | GUT-22 | 40 | 118 | PLATE | 1,800 | |
| TT-123 | G | 04371-35050 | GUT-23 | 29 | 52 | 1.5×26.5 | 530 | |
| TT-124 | P | 04371-13020 | GUT-24 | 22.06 | 57.5 | KIKU STOPPER | 260 | |
| TT-125 | B | 04371-04010 | GUT-25 | 27 | 81.75 | 1.5×24.9 | 500 | |
| TT-126 | M | 4C(B2×R2) | GUT-26 | 28.57 | 107.82 | 2.4×31.26 | 1,100 | |
| TT-127 | H | 114-2501 | GUT-27 | 28.57 | 53.8 | 2.4×25.4 | 570 | |
| TT-128 | C | 04371-37011 | GUT-28 | 35 | 99 | 1.5×38.0 | 1,100 | |
Universal joint Cross Bearings, Cross joint, or Cardan joint, is a joint or coupling in a rigid rod that allows the rod to ‘bend’ in any direction, and is commonly used in shafts that transmit rotary motion, is used for transmission systems of cars, buses, trucks, and tractors.
