UCF Series Pillow Block Ball Bearings
Pillow Block Ball Bearings UCF Series for high temperature and speeds and for relatively heavy load use, full range stock from China Pillow Block ball bearings manufacturer.
 |
Pillow Block Ball Bearings , UCF Series
Material: Steel
Model: UCF-201, UCF-202, UCF-203, UCF-204, UCF-205, UCF-206, UCF-207, UCF-208, UCF-209, UCF-210, UCF-211, UCF-212, UCF-213, UCF-214, UCF-215

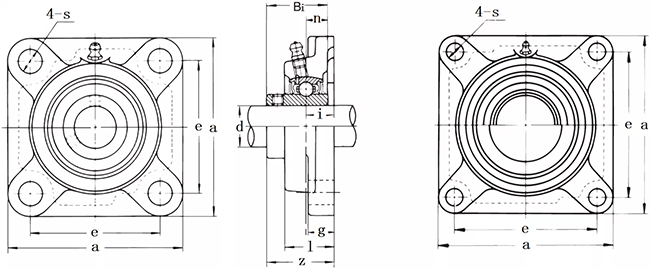

UCF Series Pillow Block Ball Bearings specification:
 |
| Model OEM Number |
Dia. (d) |
a | e | i | g | l | s | z | Bi | n | Screw Size |
| UCF-201 | 12 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
| UCF-202 | 15 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
| UCF-203 | 17 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
| UCF-204 | 20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
| UCF-205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.7 | 34 | 14.3 | M10 |
| UCF-206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 38.1 | 15.9 | M10 |
| UCF-207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44.4 | 42.9 | 17.5 | M12 |
| UCF-208 | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51.2 | 49.2 | 19 | M14 |
| UCF-209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52.2 | 49.2 | 19 | M14 |
| UCF-210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54.6 | 51.6 | 19 | M14 |
| UCF-211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58.4 | 55.6 | 22.2 | M16 |
| UCF-212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68.7 | 65.1 | 25.4 | M16 |
| UCF-213 | 65 | 187 | 149 | 30 | 20 | 50 | 19 | 69.7 | 65.1 | 25.4 | M16 |
| UCF-214 | 70 | 193 | 152 | 31 | 24 | 54 | 19 | 75.4 | 74.6 | 30.2 | M16 |
| UCF-215 | 75 | 200 | 159 | 34 | 24 | 56 | 19 | 78.5 | 77.8 | 33.3 | M16 |
