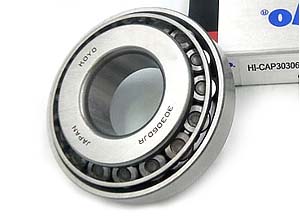

Tapered Roller Bearings 30300 Series

Tapered Roller Bearings 30300 Series, single row, precision tapered roller bearing in a Set of Cone and Cup made of alloy steel from China Tapered Roller Bearings manufacturer.

Tapered Roller Bearings, 30300 Series
Material: Steel GCR15
Seal type: Open , RS, 2RS, ZZ
Model: 30302 30303 30304 30305 30306 30307 30308 30309 30310 30311 30312 30313 30314 30315

Packages: by white box / color box, inner with polybag, then in cartons and pallets;

The specification of Tapered Roller Bearings 30300 Series as following;

Model	Dimensions(mm)			Basic Load Rating(kN)		Limiting Speed(rpm)		Weight
Model	d	D	B	Dyn.C	Stat.Co	Grease	Oil	(kg)
30302	15	42	13	22.9	21.7	9000	13000	0.095
30303	17	47	14	28.2	27.2	8500	11000	0.129
30304	20	52	15	30.5	28.4	8300	11000	0.17
30305	25	62	17	46.8	48	6300	8000	0.263
30306	30	72	21	59	63	5600	7000	0.387
30307	35	80	21	75.2	82.5	5000	6300	0.515
30308	40	90	23	90.8	108	4500	5600	0.747
30309	45	100	25	108	130	4000	5000	0.984
30310	50	110	27	130	158	3800	4800	1.28
30311	55	120	29	152	188	3400	4300	1.63
30312	60	130	31	170	210	3200	4000	1.99
30313	65	140	33	195	242	2800	3600	2.44
30314	70	150	35	218	272	2600	3400	2.98
30315	75	160	37	252	318	2400	3200	3.57
30316	80	170	39	278	352	2200	3000	4.27
30317	85	180	41	305	388	2000	2800	4.96
30318	90	190	43	342	440	1900	2600	5.8
30319	95	200	45	317	368	2000	2600	6.32
30320	100	215	47	344	400	1800	2400	7.76
30321	105	225	49	432	568	1600	2200	9.91
30322	110	240	50	471	619	1600	2200	11.5
30324	120	260	55	562	754	1500	2000	13.7
30326	130	280	58	639	864	1300	1800	17.1
30328	140	300	62	721	985	1200	1700	21.7
30330	150	320	65	825	1060	1100	1600	28.5
30332	160	340	68	880	1400	1100	1600	29
