DIN 5417 / M3200 SP Series Snap Rings
DIN 5417 / M3200 SP Series Snap Rings used to secure parts for rolling bearings, material by spring steel, black oxide, SP30-SP300 from China Snap Rings / Retaining Rings manufacturer.
 |
 |
DIN 5417 / M3200 SP Series Snap Rings , safety rings
Material: Spring Steel
Finish: Black oxide
Hardness: HRC41-HRC52
Size: SP30-SP300
Packages: by cartons, with polybag in it.

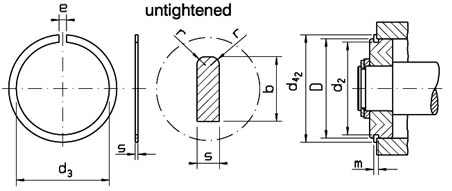

DIN 5417 / M3200 SP Series Snap Rings as following;
| Model | D | d1 min | d1 max | dc max | h | n | Weight (kg/1000Pcs) |
| SP 30 | 30 | 27.5 | 27.9 | 34.7 | 1.12 | 3 | 2.8 |
| SP 32 | 32 | 29.5 | 29.9 | 36.7 | 1.12 | 3 | 3 |
| SP 35 | 35 | 32.5 | 32.9 | 39.7 | 1.12 | 3 | 3.2 |
| SP 37 | 37 | 34.1 | 34.5 | 41.3 | 1.12 | 3 | 3.4 |
| SP 40 | 40 | 37.4 | 37.8 | 44.6 | 1.12 | 3 | 3.6 |
| SP 42 | 42 | 39 | 39.5 | 46.3 | 1.12 | 3 | 3.8 |
| SP 44 | 44 | 41 | 41.5 | 48.3 | 1.12 | 3 | 4 |
| SP 47 | 47 | 43.8 | 44.3 | 52.7 | 1.12 | 4 | 5.3 |
| SP 50 | 50 | 46.8 | 47.3 | 55.7 | 1.12 | 4 | 5.8 |
| SP 52 | 52 | 48.9 | 49.4 | 57.9 | 1.12 | 4 | 5.9 |
| SP 55 | 55 | 51.8 | 52.3 | 60.7 | 1.12 | 4 | 6.2 |
| SP 56 | 56 | 52.6 | 53.2 | 61.7 | 1.12 | 4 | 6.5 |
| SP 58 | 58 | 54.6 | 55.2 | 63.7 | 1.12 | 4 | 6.7 |
| SP 62 | 62 | 58.4 | 59 | 67.7 | 1.7 | 4 | 10.5 |
| SP 65 | 65 | 61.4 | 62 | 70.7 | 1.7 | 4 | 11 |
| SP 68 | 68 | 63.6 | 64.2 | 74.6 | 1.7 | 5 | 12.6 |
| SP 72 | 72 | 67.6 | 68.2 | 78.6 | 1.7 | 5 | 14.7 |
| SP 75 | 75 | 70.6 | 71.2 | 81.6 | 1.7 | 5 | 15.3 |
| SP 80 | 80 | 75.6 | 76.2 | 86.6 | 1.7 | 5 | 16.3 |
| SP 85 | 85 | 80.6 | 81.2 | 91.6 | 1.7 | 5 | 17.5 |
| SP 90 | 90 | 85.6 | 86.2 | 96.5 | 2.46 | 5 | 26.6 |
| SP 95 | 95 | 90.6 | 91.2 | 101.6 | 2.46 | 5 | 28.2 |
| SP 100 | 100 | 95.4 | 96.2 | 106.5 | 2.46 | 5 | 29.2 |
| SP 110 | 110 | 105.4 | 106.2 | 116.6 | 2.46 | 5 | 32.8 |
| SP 115 | 115 | 110.4 | 111.2 | 121.6 | 2.46 | 5 | 34.4 |
| SP 120 | 120 | 113.8 | 114.6 | 129.7 | 2.82 | 7 | 60.6 |
| SP 125 | 125 | 118.8 | 119.6 | 134.7 | 2.82 | 7 | 63 |
| SP 130 | 130 | 123.8 | 124.6 | 139.7 | 2.82 | 7 | 65.6 |
| SP 140 | 140 | 133.4 | 134.6 | 149.7 | 2.82 | 7 | 70.6 |
| SP 145 | 145 | 138.4 | 139.6 | 154.7 | 2.82 | 7 | 73 |
| SP 150 | 150 | 143.3 | 144.5 | 159.7 | 2.82 | 7 | 77.2 |
| SP 160 | 160 | 153.3 | 154.5 | 169.7 | 2.82 | 7 | 81 |
| SP 170 | 170 | 161.7 | 162.9 | 182.9 | 3.1 | 10 | 122 |
| SP 180 | 180 | 171.6 | 172.8 | 192.9 | 3.1 | 10 | 128 |
| SP 190 | 190 | 181.4 | 182.8 | 202.9 | 3.1 | 10 | 139 |
| SP 200 | 200 | 191.4 | 192.8 | 212.9 | 3.1 | 10 | 148 |
| SP 210 | 210 | 201.3 | 202.7 | 222.8 | 3.1 | 10 | 156 |
| SP 215 | 215 | 206.3 | 207.7 | 227.8 | 3.1 | 10 | 160 |
| SP 225 | 225 | 214.7 | 216.1 | 237 | 3.5 | 10 | 196 |
| SP 230 | 230 | 219.6 | 221 | 242 | 3.5 | 10 | 200 |
| SP 240 | 240 | 229.6 | 231 | 252 | 3.5 | 10 | 209 |
| SP 250 | 250 | 239.6 | 241 | 262 | 3.5 | 10 | 220 |
| SP 260 | 260 | 247.5 | 250 | 272 | 3.5 | 10 | 230 |
| SP 270 | 270 | 257.5 | 260 | 282 | 3.5 | 10 | 240 |
| SP 280 | 280 | 267.5 | 270 | 292 | 3.5 | 10 | 250 |
| SP 290 | 290 | 277.5 | 280 | 302 | 3.5 | 10 | 260 |
| SP 300 | 300 | 284.5 | 287 | 314 | 4.5 | 10 | 400 |
