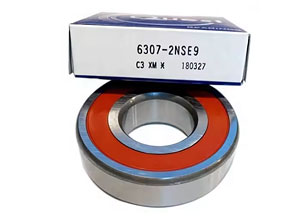

6300 Series Deep Groove Ball Bearings

Deep Groove Ball Bearings 6300 Series With the largest cross-section and highest load ratings, full range stock from China Deep Groove ball bearings manufacturer.

Deep Groove Ball Bearings , 6300 Series
Material: Steel
Model: 6300 6301 6302 6303 6304 6305, 6307, 6308, 6309, 6310, 6311, 6312, 6313, 6314, 6315
(Note: ZZ Means Steel seal, 2RS Means Rubber Seal)

6300 Series Deep Groove Ball Bearings specification:

Bearing No.	Dimensions (mm)				Basic Load Rating (kN)		Limit Speed (rpm)		Weight (Kg)
Bearing No.	d	D	B	rs min	Cr	Cor	Grease	Oil	Weight (Kg)
6301	12	37	12	1	9.7	4.2	20000	24000	0.06
6302	15	42	13	1	11.4	5.45	17000	21000	0.08
6303	17	47	14	1	13.6	6.55	15000	18000	0.12
6304	20	52	15	1.1	15.9	7.8	14000	17000	0.15
6305	25	62	17	1.1	22.4	11.5	11000	14000	0.23
6306	30	72	19	1.1	28.1	15.8	9500	12000	0.35
6307	35	80	21	1.5	33.4	19.2	8500	10000	0.46
6308	40	90	23	1.5	40.7	24	7500	9000	0.63
6309	45	100	25	1.5	52.8	31.8	6700	8000	0.85
6310	50	110	27	2	61.8	37.9	6000	7000	1.10
6311	55	120	29	2	71.6	44.8	5300	6300	1.40
6312	60	130	31	2.1	81.8	51.8	5000	6000	1.72
6313	65	140	33	2.1	93.8	60.5	4500	5600	2.00
6314	70	150	35	2.1	105	68	4300	5300	2.60
